Milestone 3

Video Demonstration

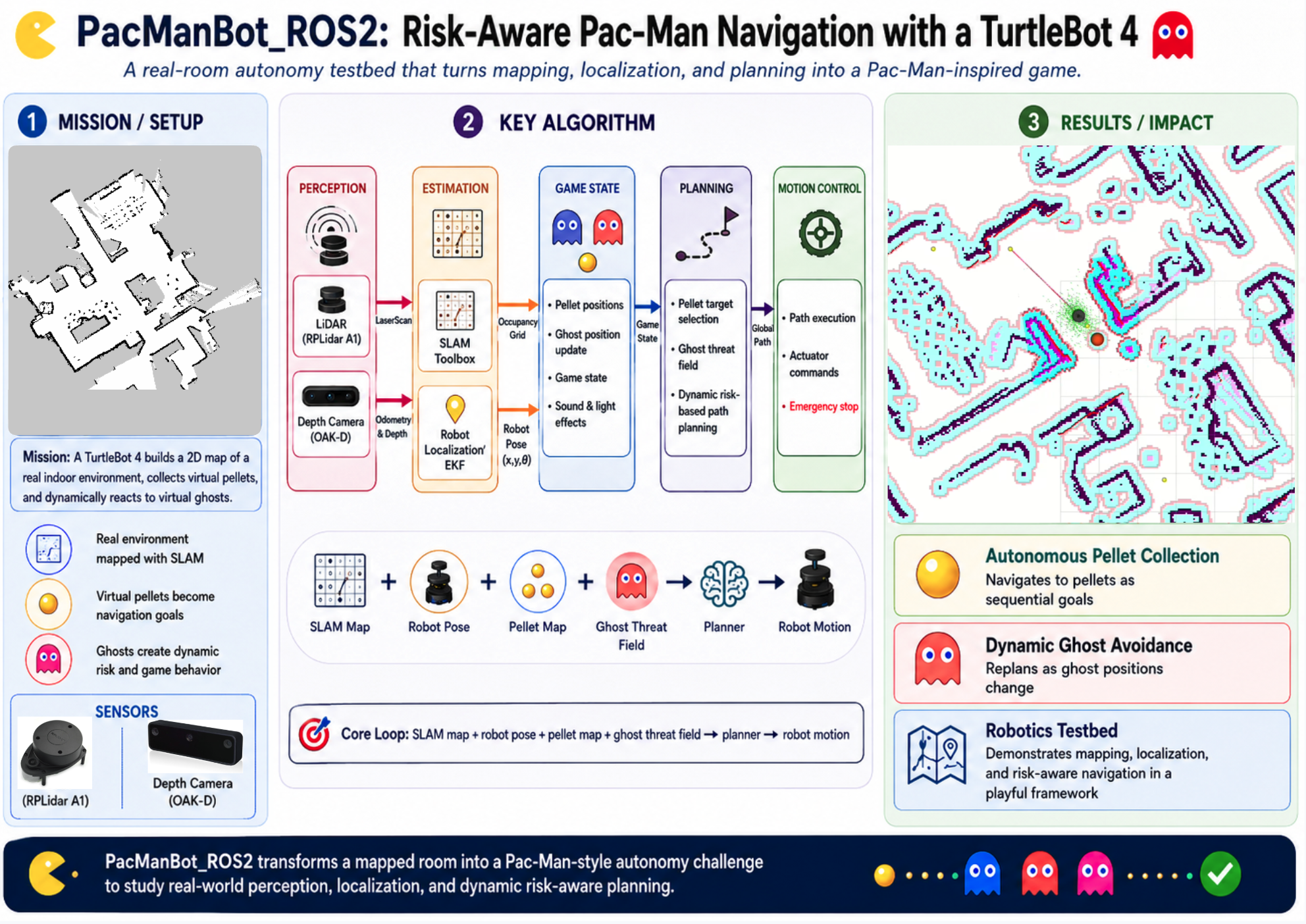

1. PacManBot Abstract Diagram

Abstract Diagram —

2. Algorithm

The core technical contribution of the PacManBot system is a custom game-state and decision-making layer built on top of the ROS 2 TurtleBot 4 and Nav2 navigation stack. Rather than replacing Nav2, the custom modules define the Pac-Man game behavior: pellet generation, pellet collection, Clyde ghost behavior, game-state transitions, scoring, sound feedback, light feedback, user interaction, and high-level goal selection.

This section first gives the final updated module declaration table, then presents the custom software logic using pseudocode-style algorithms. This format is used to make the system logic easier to follow while still including the key mathematical relationships used by the planner, pellet manager, Clyde node, and game controller.

Low Level System Diagram

High Level Diagram Milestone 2

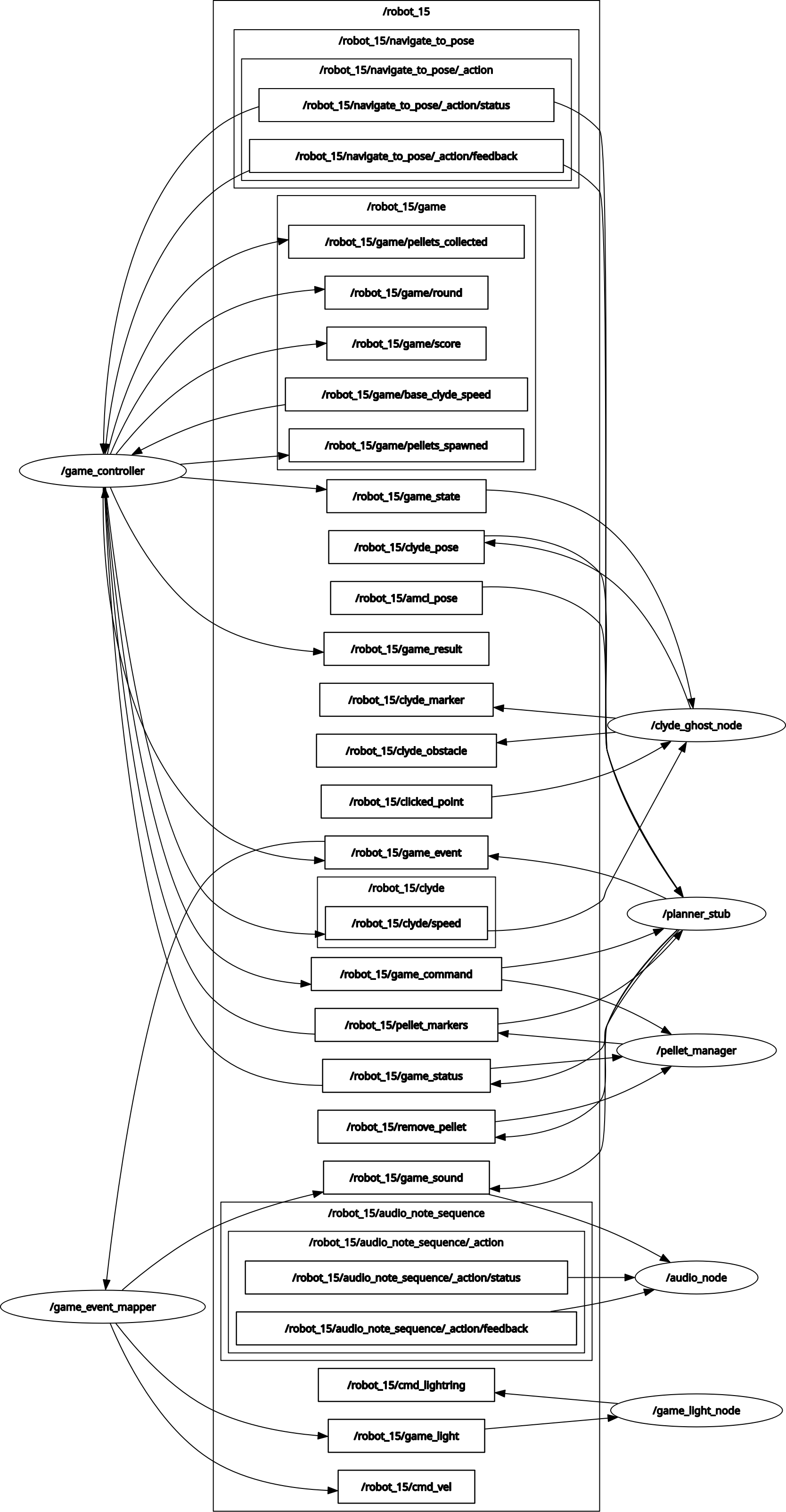

rqt graph showing custom nodes

Computational Map - Custom Game Nodes

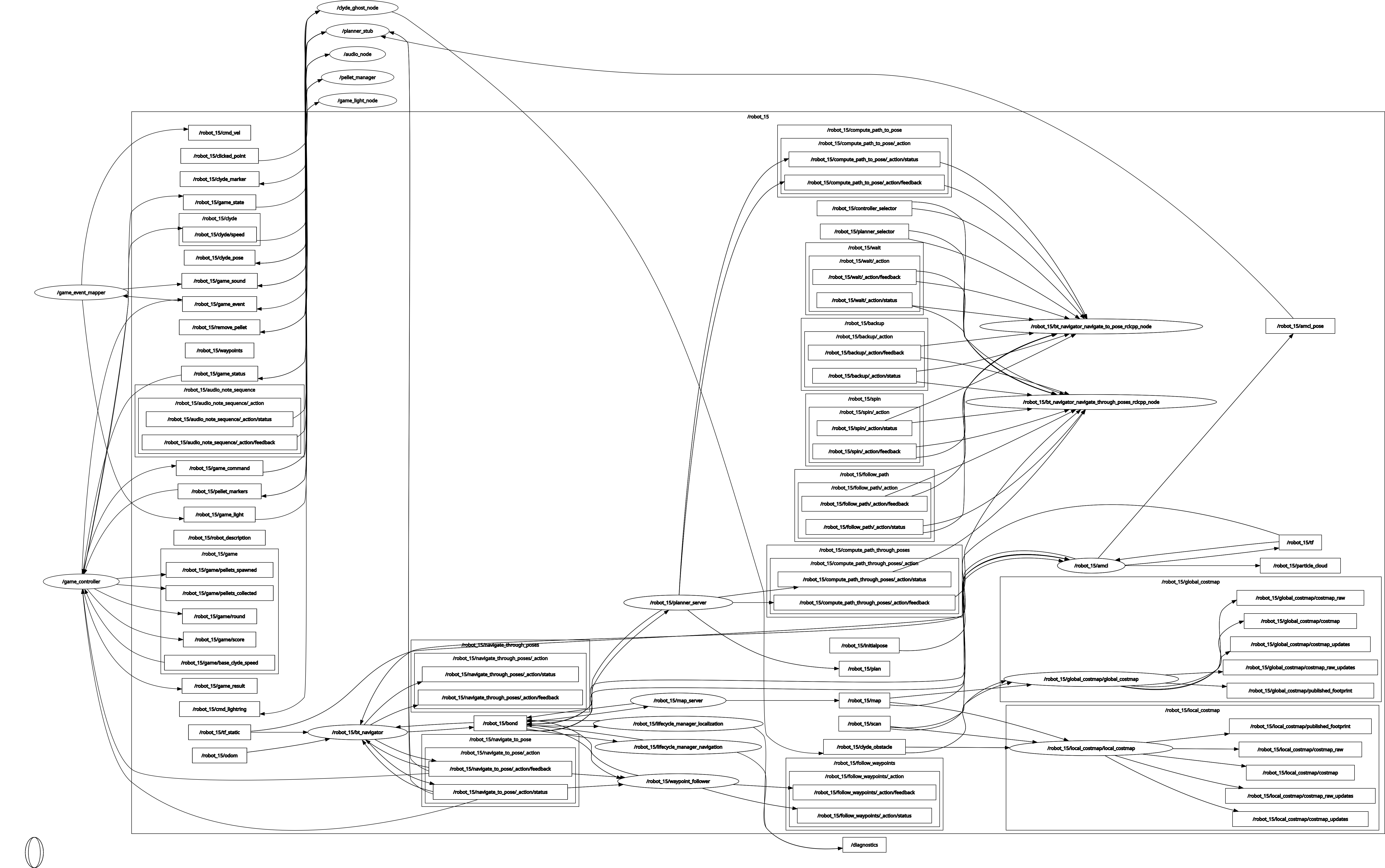

rqt graph showing custom nodes with library nodes

Computational Map - Full ROS 2 System

2.1 Final Updated Module Declaration Table

The PacManBot system uses both custom project modules and external ROS 2 library modules. Custom modules were developed specifically for the game logic, feedback system, pellet behavior, Clyde behavior, and game-state control. Library modules are provided by ROS 2, TurtleBot 4, Nav2, RViz, and sensor driver packages.

Compared to the previous milestone, the system has expanded beyond a basic pellet-navigation demo. The previous milestone listed /audio_node, /game_event_mapper, /game_light_node, /pellet_manager, and /planner_stub as the main custom project nodes, while ghost behavior and risk-reward planning were still listed as pending. The current implementation now includes additional custom modules such as /game_controller, /clyde_ghost_node, /wait_for_amcl_pose, /game_state_demo_gui, and a custom RViz plugin panel. The project has also progressed from simple nearest-pellet navigation into a more complete game architecture with Clyde-aware planning, game-state management, scoring, round progression, reset behavior, and user interface support.

Module / Node	Functional Domain	Software Type	Description	Previous Milestone Status	Current Status	Change Since Previous Milestone
LiDAR Sensor / Oak-d RGBD Camera	Perception	Library / Driver	Provides LiDAR scan data used by AMCL and Nav2 costmaps.	Completed	Completed	Active perception sources for localization, mapping and navigation.
SLAM Toolbox	Mapping	Library	Used to build the saved occupancy grid map.	Completed	Completed	Runtime uses the saved map produced from SLAM.
Robot Localization	Localization	Library	Estimates robot pose on the saved map.	Completed	Completed	Still required for planner and game-state logic.
Sound Effects / `/audio_node`	Game Feedback	Custom	Plays game sounds using Create 3 audio note sequences.	Completed	Completed	Still valid from previous milestone.
Light Effects / `/game_light_node`	Game Feedback	Custom	Displays game states using the Create 3 lightring.	Completed	Completed	Still valid from previous milestone.
Game Event Mapper / `/game_event_mapper`	Event Coordination	Custom	Maps high-level events to sound, light, and motion.	Completed	Completed	Still valid from previous milestone.
Pellet Manager / `/pellet_manager`	Game World	Custom	Generates, publishes, removes, and resets pellets.	Completed baseline	Completed	Removal and reset behavior now clearly integrated.
Planner Stub / `/planner_stub`	Strategic Planning	Custom	Selects pellet goals, sends Nav2 goals, handles collection and Clyde risk.	Completed baseline	Completed / Improved	Now includes Clyde-aware scoring, replanning, death detection, and return-home behavior.
Ghost Path Behavior / `/clyde_ghost_node`	Game State	Custom	Moves Clyde through the map and publishes Clyde as a marker and obstacle.	Pending	Completed baseline	Major new module added.
Risk-Reward Robot Path Planning	Strategic Planning	Custom	Chooses pellets using distance, Clyde risk, and threat direction.	Pending	Completed baseline	Implemented as high-level pellet scoring plus Nav2 costmap avoidance.
Game Controller / `/game_controller`	Game State	Custom	Manages menu, start, running, death, complete, score, round, and reset states.	Not listed	Completed baseline	New major module added.
RViz Game Panel / `pacmanbot_rviz_plugins`	User Interface	Custom	Provides start/reset/status controls in RViz.	Not listed	Completed baseline	New interface module added.
Demo GUI / `/game_state_demo_gui`	Testing / UI	Custom	Allows manual testing of game events, lights, and sounds.	Not listed	Completed demo tool	New support tool added.
AMCL Wait Utility / `/wait_for_amcl_pose`	Startup Support	Custom	Waits for valid localization before game behavior begins.	Not listed	Completed	New startup reliability utility.
Nav2 Custom Configuration / `nav2_custom.yaml`	Navigation Configuration	Library / Configured	Provides project-specific Nav2 tuning for planner, controller, costmaps, velocity smoothing, collision monitoring, and Clyde obstacle integration.	Basic Nav2 configuration	Completed / Tuned	Not a custom node, but updated to support game-speed navigation, tighter costmap inflation, and Clyde-aware obstacle avoidance through the local/global costmaps.

Overall, the system has progressed from a functional navigation baseline into a playable game baseline. It can localize on a saved SLAM map, generate pellets in valid map space, visualize pellets in RViz, select pellet targets using Clyde-aware scoring, navigate using Nav2, remove collected pellets, track score, spawn and move Clyde, represent Clyde as a dynamic obstacle, detect Clyde collision, trigger sound and lighting effects, run start/death/win/reset sequences, return home after death or completion, and provide operator controls through GUI and RViz tools.

2.2 Algorithm Logic and System Model

The PacManBot system is modeled as a hybrid autonomy and game-control architecture. The custom modules define the Pac-Man game rules and high-level decision-making, while Nav2 provides lower-level path planning, controller execution, and costmap-based obstacle avoidance.

The system can be summarized by the following state representation:

State:
    xr(t) = robot pose from AMCL = [xr, yr, theta]
    xc(t) = Clyde pose = [xc, yc]
    P(t)  = set of remaining pellets
    G(t)  = current game state
    S(t)  = current score
    R(t)  = current round

The main game states are:

G(t) ∈ {MENU, RETURNING_HOME, STARTING, RUNNING, DYING, COMPLETE}

Each pellet is represented as:

pi = [xi, yi, id_i]

where (xi, yi) is the pellet position in the map frame and id_i is the marker identifier used for visualization and removal.

Total Logic Summary: PacManBot Game Autonomy

This summary describes the complete system-level behavior. It is not contained in one file; it is distributed across the game controller, planner, pellet manager, Clyde node, and feedback nodes.

Purpose: Coordinate the full game sequence from startup to gameplay, win, death, and reset.

Primary Source File: game_controller.py
Supporting Source Files: planner_stub.py, pellet_manager.py, clyde_ghost_node.py, game_event_mapper.py

Item	Description
Inputs	Saved map, AMCL pose, pellet markers, Clyde pose, start/reset commands
Outputs	Game state, score, Nav2 goals, light events, sound events, reset commands
Main Responsibility	Coordinate the full PacManBot gameplay loop

Total Logic Summary: PacManBot Game Autonomy

Require:
    Saved occupancy map M
    AMCL robot pose xr
    Clyde pose xc
    Pellet set P
    Game command input

Ensure:
    Robot navigates toward pellets
    Game state, score, Clyde behavior, lights, and audio are updated

 Load saved occupancy map M
 Initialize game state G <- MENU
 Wait until AMCL pose xr is available
 Generate pellet set P from valid map cells
 Initialize Clyde in valid map space

 while system is running do
     if start command received then
         Reset score, pellets, Clyde, and round variables
         Command robot to return home
        Trigger theatrical start event
        Enable planner autonomy
        Set G <- RUNNING
    end if

    while G = RUNNING do
        Update robot pose xr
        Update Clyde pose xc
        Update remaining pellet set P
        Publish Clyde as a dynamic obstacle
        Select best pellet using Clyde-aware scoring
        Send selected pellet to Nav2
        Monitor pellet collection
        Monitor Clyde collision

        if pellet collected then
            Remove pellet from P
            Increment score
            Publish pellet event
        end if

        if Clyde catches robot then
            Cancel Nav2 goal
            Disable autonomy
            Publish death event
            Set G <- DYING
        end if

        if all pellets collected then
            Disable autonomy
            Publish win event
            Set G <- COMPLETE
        end if
    end while

    if G = DYING or G = COMPLETE then
        Command robot to return home
        Wait for reset or next start command
    end if
end while

Algorithm 1: Pellet Generation and Removal

Custom Node: pellet_manager
Purpose: Convert the saved map into valid pellet locations and remove pellets when collected.

Item	Description
Inputs	Occupancy map image, map resolution, map origin, remove/reset requests
Outputs	Pellet marker array, updated pellet set
Main Responsibility	Maintain the game-world pellet layout

Algorithm 1: Pellet Generation and Removal

Require:
    Occupancy map image M
    Map resolution R
    Map origin (x0, y0)
    Free-space threshold Tf
    Pellet spacing s
    Wall-clearance radius rw

Ensure:
    Pellets are placed only in valid free-space map locations

 Load map YAML file
 Load occupancy map image M
 Read map resolution R and origin (x0, y0)
 Convert spacing s and clearance rw from meters to pixels
 Initialize empty pellet set P

 for each candidate pixel (u, v) sampled at spacing s do
     if M(u, v) <= Tf then
         Reject candidate
     else if candidate is too close to a wall then
        Reject candidate
    else
        Convert pixel (u, v) to world position (x, y)
        Assign pellet ID
        Add pellet to P
    end if
end for

Publish P as RViz marker array

while node is running do
    if remove_pellet message received then
        Remove pellet with matching ID from P
        Republish updated marker array
    end if

    if reset_pellets service called then
        Regenerate full pellet set P
        Republish marker array
    end if
end while

Key Map-to-Pellet Logic

A candidate pellet pixel is accepted only if it is in free space:

\[M(u,v) > T_f\]

The pixel-to-world conversion is:

\[x = uR + x_0\] \[y = (H-v)R + y_0\]

where \(R\) is the map resolution, \((x_0,y_0)\) is the map origin, and \(H\) is the map image height. The \((H-v)\) term flips image coordinates into the ROS map frame.

When a pellet is collected, the active pellet set is updated as:

\[P_{t+1} = P_t \setminus \{p_i\}\]

where H is the map image height. The (H - v) term flips image coordinates into the ROS map frame because image coordinates increase downward while ROS map coordinates increase upward.

Algorithm 2: Clyde Ghost Motion and Obstacle Publishing

Custom Node: clyde_ghost_node
Purpose: Simulate Clyde as a moving ghost and publish him as both a game object and a dynamic obstacle.

Item	Description
Inputs	Occupancy map, reset command, Clyde speed command
Outputs	Clyde pose, Clyde marker, Clyde obstacle cloud
Main Responsibility	Move Clyde through valid map space and inject him into Nav2 costmaps

Algorithm 2: Clyde Ghost Motion and Obstacle Publishing

Require:
    Occupancy map M
    Free-space threshold Tf
    Wall-clearance radius rw
    Clyde speed vc

Ensure:
    Clyde moves through valid map space and appears as a dynamic obstacle

 Load occupancy map M
 Build valid free-space mask
 Reject cells too close to walls
 Select valid spawn cell for Clyde
 Select valid target cell for Clyde
 Plan or choose path through valid cells

 while node is running do
     if reset_clyde command received then
         Select new valid spawn cell
        Select new valid target cell
    end if

    if speed command received then
        Update Clyde speed vc
    end if

    Move Clyde toward current target

    if Clyde reaches target then
        Select a new valid target cell
    end if

    Publish Clyde pose
    Publish Clyde RViz marker
    Publish Clyde obstacle cloud for Nav2 costmap
end while

Clyde Prediction and Costmap Logic

Clyde’s simplified motion update can be written as:

\[\mathbf{x}_c(t+\Delta t) = \mathbf{x}_c(t) + v_c \Delta t \frac{ \mathbf{x}_{goal} - \mathbf{x}_c(t) }{ \|\mathbf{x}_{goal} - \mathbf{x}_c(t)\| }\]

Clyde is also represented in the navigation costmap as a local obstacle region:

\[C_{\mathrm{clyde}}(t) = \left\{ (x,y): \sqrt{(x-x_c(t))^2+(y-y_c(t))^2} \leq r_c \right\}\]

The active navigation costmap can therefore be summarized as:

\[C(t) = C_{\mathrm{static}} \cup C_{\mathrm{sensor}}(t) \cup C_{\mathrm{clyde}}(t)\]

Clyde affects the robot in two ways. First, the custom planner uses Clyde’s pose to score risky pellets. Second, Nav2 uses Clyde’s obstacle cloud in the local costmap so the robot can avoid Clyde during motion execution.

Algorithm 3: Clyde-Aware Pellet Selection

Custom Node: planner_stub
Purpose: Select the best pellet target using robot distance, Clyde proximity, and Clyde threat direction.

Item	Description
Inputs	Robot pose, Clyde pose, pellet set, game command
Outputs	Selected pellet goal, Nav2 action goal
Main Responsibility	Choose the safest and most useful pellet goal

Algorithm 3: Clyde-Aware Pellet Selection

Require:
    Robot pose xr = (xr, yr)
    Clyde pose xc = (xc, yc)
    Remaining pellet set P
    Ghost risk radius rg
    Ghost risk weight wg
    Direction penalty weight wd

Ensure:
    A pellet goal is selected using distance and Clyde risk

 best_pellet <- None
 best_score <- infinity

 for each pellet pi in P do
     dr <- sqrt((pi.x - xr.x)^2 + (pi.y - xr.y)^2)
     dc <- sqrt((pi.x - xc.x)^2 + (pi.y - xc.y)^2)

     if dc < rg then
         clyde_risk <- (rg - dc) * wg
     else
         clyde_risk <- 0
    end if

    direction_penalty <- 0

    if Clyde is threatening robot then
        robot_to_clyde <- xc - xr
        robot_to_pellet <- pi - xr
        alignment <- dot(robot_to_clyde, robot_to_pellet)

        if alignment > 0 then
            direction_penalty <- wd * (1 + alignment)
        end if
    end if

    score <- dr + clyde_risk + direction_penalty

    if score < best_score then
        best_score <- score
        best_pellet <- pi
    end if
end for

return best_pellet

Clyde-Aware Scoring and Escape Logic

For each pellet \(p_i=(x_i,y_i)\), the robot-to-pellet distance is:

\[d_r(p_i) = \sqrt{(x_i-x_r)^2+(y_i-y_r)^2}\]

The Clyde-to-pellet distance is:

\[d_c(p_i) = \sqrt{(x_i-x_c)^2+(y_i-y_c)^2}\]

The Clyde risk penalty is:

\[R_c(p_i) = \max(0,\ r_g-d_c(p_i))w_g\]

Clyde’s closing speed is estimated using the previous and current robot-Clyde distances:

\[v_{\mathrm{close}}(t) = \frac{d_{rc}(t-\Delta t)-d_{rc}(t)}{\Delta t}\]

The final pellet score is:

\[J(p_i) = d_r(p_i) + R_c(p_i) + D(p_i)\]

The selected pellet is:

\[p^* = \arg\min_{p_i \in P_t} J(p_i)\]

Here, \(D(p_i)\) is the escape-direction penalty. It increases the score of pellets that lie in Clyde’s direction when Clyde is close or approaching. This causes the robot to prefer pellets that move it away from danger.

Algorithm 4: Planner Execution and Replanning

Custom Node: planner_stub
Related Configuration: nav2_custom.yaml
Purpose: Send pellet goals to Nav2, monitor progress, remove pellets, detect death, and replan when needed.

Item	Description
Inputs	AMCL pose, pellet markers, Clyde pose, game commands
Outputs	Nav2 goals, remove-pellet commands, game status messages
Main Responsibility	Execute strategic goals through Nav2 and monitor game conditions

Algorithm 4: Planner Execution and Replanning

Require:
    AMCL pose xr
    Pellet set P
    Clyde pose xc
    Game command stream
    Replan margin m
    Pellet pickup radius rp
    Clyde death radius rdeath

Ensure:
    Robot pursues pellets while avoiding unsafe game states

 Wait for AMCL pose
 Save first valid AMCL pose as home pose
 Wait until game command is ENABLE

 while planner is enabled do
     Update robot pose xr
     Update pellet set P
     Update Clyde pose xc

     if no active Nav2 goal then
         target <- Clyde-Aware Pellet Selection(P, xr, xc)
        Send target to Nav2
    end if

    if a better pellet exists by margin m then
        Cancel current Nav2 goal
        Select new pellet target
        Send new target to Nav2
    end if

    for each pellet pi in P do
        if distance(robot, pi) <= rp then
            Publish remove_pellet(pi.id)
            Publish pellet_collected status
        end if
    end for

    if distance(robot, Clyde) <= rdeath then
        Cancel current Nav2 goal
        Disable planner
        Publish clyde_killed status
    end if

    if P is empty then
        Publish game_complete status
        Disable planner
    end if
end while

Replanning, Collection, and Death Conditions

After the planner selects a target pellet, that pellet becomes the Nav2 goal:

\[g_t = p^*\]

The planner only switches goals when the new target is better by at least the replan margin:

\[J(p_{\mathrm{new}}) + m < J(p_{\mathrm{current}})\]

A pellet is collected when the robot enters the pickup radius:

\[d_r(p_i) \leq r_p\]

The robot is caught by Clyde when:

\[d_{\mathrm{death}}(t) = \sqrt{(x_r(t)-x_c(t))^2+(y_r(t)-y_c(t))^2} \leq r_{\mathrm{death}}\]

Algorithm 5: Game Controller State Machine

Custom Node: game_controller
Purpose: Manage the full game state, including menu, start, running, death, completion, score, and round behavior.

Item	Description
Inputs	Start/reset services, game status messages, pellet markers
Outputs	Game commands, game state, score, round, Clyde speed, game events
Main Responsibility	Coordinate high-level game state transitions

Algorithm 5: Game Controller State Machine

Require:
    Start service
    Reset service
    Planner game_status messages
    Pellet marker count
    Base Clyde speed
    Round speed increment

Ensure:
    Game state and score remain consistent across the full game loop

 G <- MENU
 score <- 0
 round <- 1
 pellets_collected <- 0

 while game_controller is running do
     if start service called then
         score <- 0
         pellets_collected <- 0
         Publish game_command RETURN_HOME
        Publish game_event START_THEATRICAL
        Publish Clyde speed for current round
        Publish game_command ENABLE
        G <- RUNNING
    end if

    if reset service called then
        Publish game_command DISABLE
        Reset pellets
        Reset Clyde
        score <- 0
        pellets_collected <- 0
        G <- MENU
    end if

    if game_status = PELLET_COLLECTED then
        pellets_collected <- pellets_collected + 1
        score <- score + 1
        Publish score
        Publish game_event PELLET
    end if

    if game_status = GAME_COMPLETE then
        Publish game_command DISABLE
        Publish game_event WIN
        G <- COMPLETE
        Publish game_command RETURN_HOME
    end if

    if game_status = CLYDE_KILLED then
        Publish game_command DISABLE
        Publish game_event DEATH
        G <- DYING
        Publish game_command RETURN_HOME
    end if
end while

Game State and Score Update Logic

The score is updated when a pellet is collected. The collected pellet count is updated as:

\[N_{\mathrm{collected}}(t+1) = N_{\mathrm{collected}}(t)+1\]

The round is complete when all spawned pellets have been collected:

\[N_{\mathrm{collected}}(t) \geq N_{\mathrm{spawned}}\]

Clyde’s speed increases by round:

\[v_c(R_t) = v_{\mathrm{base}} + (R_t-1)v_{\mathrm{step}}\]

Algorithm 6: Game Event Mapping

Custom Node: game_event_mapper
Purpose: Convert abstract game events into light commands, sound commands, and optional robot motion effects.

Item	Description
Inputs	Game event string
Outputs	Game light command, game sound command, optional `cmd_vel`
Main Responsibility	Translate game events into physical robot feedback

Algorithm 6: Game Event Mapping

Require:
    Game event e

Ensure:
    Each game event produces the correct robot feedback behavior

 Receive game event e

 if e = START_THEATRICAL then
     Publish light command START
     Publish sound command PACMAN_THEME
     Execute timed spin motion

 else if e = PELLET then
     Publish light command PELLET
     Publish sound command PELLET

 else if e = POWER_PELLET then
    Publish light command POWER_PELLET
    Publish sound command POWERUP

else if e = DEATH or e = GAME_OVER then
    Publish light command GAME_OVER
    Publish sound command DEATH
    Execute timed shake motion

else if e = WIN then
    Publish light command WIN
    Publish sound command WIN

else if e = RESET then
    Publish light command OFF
    Publish zero velocity command
end if

The event mapping can be summarized as:

game_event -> (light_command, sound_command, optional_motion)

Examples:

PELLET            -> (PELLET_LIGHT, PELLET_SOUND, none)
DEATH             -> (GAME_OVER_LIGHT, DEATH_SOUND, SHAKE_MOTION)
START_THEATRICAL  -> (START_LIGHTS, THEME_SOUND, SPIN_MOTION)

Algorithm 7: Light Feedback

Custom Node: game_light_node
Purpose: Convert light commands into Create 3 lightring colors and animations.

Item	Description
Inputs	Light command string
Outputs	Create 3 `cmd_lightring` messages
Main Responsibility	Provide visual feedback for game state and events

Algorithm 7: Light Feedback

Require:
    Light command L

Ensure:
    Robot lightring displays the current game state

 Receive light command L
 Stop active animation if command overrides it

 if L is a static color command then
     Set all LEDs to requested RGB color
     Publish lightring message

 else if L is an animated command then
     Select animation frame sequence
     while animation is active do
         Publish next LED frame
        Wait for timer callback
    end while

else if L = OFF then
    Set all LEDs to black
    Publish lightring message
end if

Lightring State Logic

The Create 3 lightring is modeled as a six-LED state vector:

\[\Lambda(t) = [\ell_1,\ell_2,\ell_3,\ell_4,\ell_5,\ell_6]\]

Each LED stores an RGB command:

\[\ell_i = [R_i,\ G_i,\ B_i]\]

For static colors, the same RGB command is applied to all six LEDs:

\[\Lambda(t) = [\ell,\ell,\ell,\ell,\ell,\ell]\]

For static colors:

Lambda(t) = same RGB value for all six LEDs

For animations:

Lambda(t) = current frame from selected animation sequence

Algorithm 8: Audio Feedback

Custom Node: audio_node
Supporting File: audio_library.py
Purpose: Convert game sound commands into Create 3 note sequences.

Item	Description
Inputs	Sound command string
Outputs	Create 3 `audio_note_sequence` action goal
Main Responsibility	Provide audio feedback for game events

Algorithm 8: Audio Feedback

Require:
    Sound command A
    Audio library mapping sound names to MIDI note sequences

Ensure:
    Robot plays the requested game sound effect

1:  Receive sound command A

2:  if audio node is busy then
3:      Ignore command or wait until current sequence completes
4:  end if

5:  Look up MIDI note sequence for A

6:  for each note in sequence do
7:      Convert MIDI note to frequency
8:      Convert duration to ROS duration field
9:      Append note to AudioNoteSequence
10: end for

11: Send AudioNoteSequence action goal to Create 3
12: Set busy flag while sound is playing
13: Clear busy flag after playback finishes

Audio Frequency Conversion

The MIDI-to-frequency conversion is:

\[f(m) = 440 \cdot 2^{\frac{m-69}{12}}\]

where \(m\) is the MIDI note number.

Algorithm 9: User Interface and Startup Support

Custom Nodes: game_state_demo_gui, pacmanbot_rviz_plugins, wait_for_amcl_pose
Purpose: Support manual testing, RViz-based game control, and startup synchronization.

Item	Description
Inputs	User button input, AMCL pose stream
Outputs	Start/reset service calls, manual game events, startup readiness
Main Responsibility	Provide operator control and prevent gameplay before localization is ready

Algorithm 9: User Interface and Startup Support

Require:
    User button input
    AMCL pose stream

Ensure:
    Game commands are only used after localization is available

 wait_for_amcl_pose subscribes to AMCL pose

 while no AMCL pose has been received do
     Keep waiting
 end while

 Mark localization as ready

 if user presses RViz Start button then
     Call game/start service
 end if

 if user presses RViz Reset button then
    Call game/reset service
end if

if user presses demo GUI event button then
    Publish selected game_event, game_light, or game_sound command
end if

2.3 Algorithm Summary

Together, these algorithms define the custom PacManBot behavior. The pellet_manager creates the game objectives, clyde_ghost_node creates a moving ghost and obstacle, planner_stub selects strategic pellet targets, game_controller manages score and state transitions, and the feedback nodes translate game events into lights, sound, and motion.

The system is therefore a layered autonomy design, mimicking an augmented reality video game. Nav2 still performs the low-level navigation and obstacle avoidance, while the custom modules implement the Pac-Man game rules and high-level decision-making.

3. Benchmarking & Results

The sidebar will automatically highlight the section you are currently viewing.

3.1 Observations of Pacman Success

We wanted to evaluate the rate of success of the first round of the Pacman game under round 1 conditions. This data was a simple log of how many pellets were collected for each trial. This was to evaluate the escape and pathing behavior of pacman for 1 Ghost (Clyde).

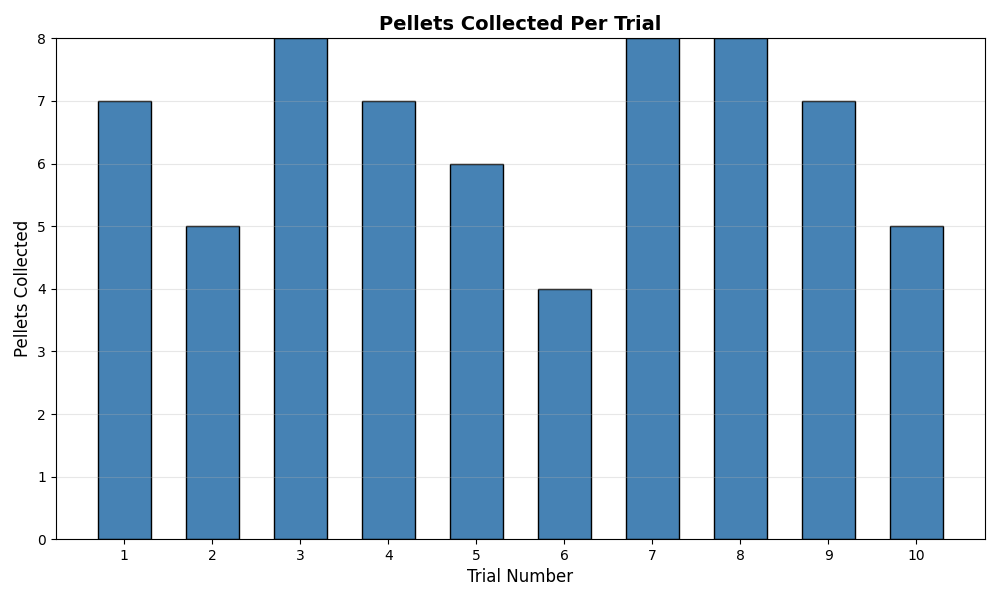

Pellets Collected Per Trial

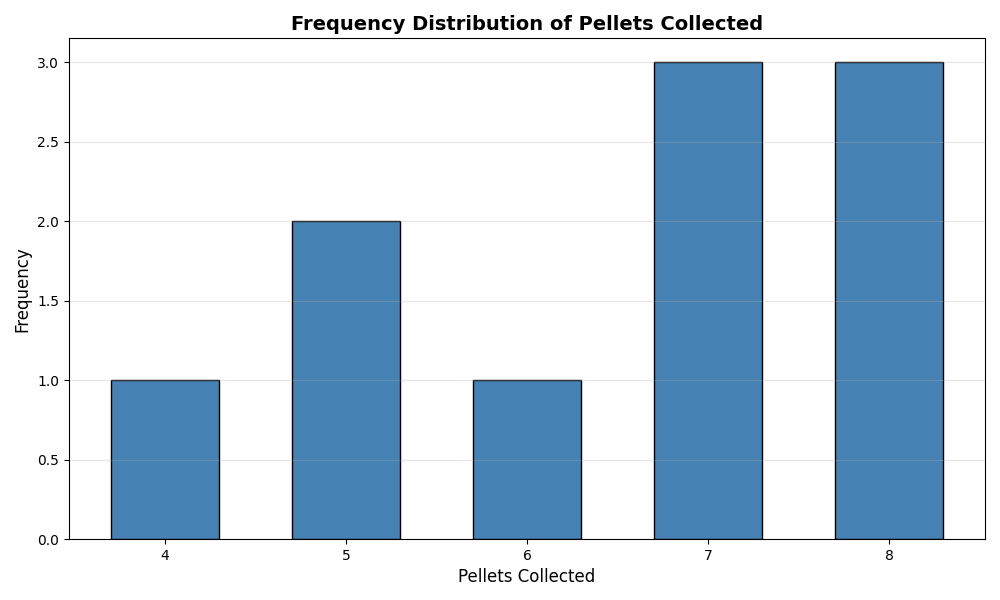

Pellet Collection Frequency Chart

3.2 Conclusion

Under the baseline conditions for Clydes speed (0.25m/s), which is initialized for round 1, Pacman was able to complete the first round 30% of the time. However this rate of success can be improved given the qualitative notes that were taken during these trials. 30% of the trials only collected 7 pellets as the final pellet was located very far away from the robots starting position. Additionally, it seems like the last pellet was located in an area of the house that could easily be “Puppy Guarded” by Clyde. An image below shows this foul play.

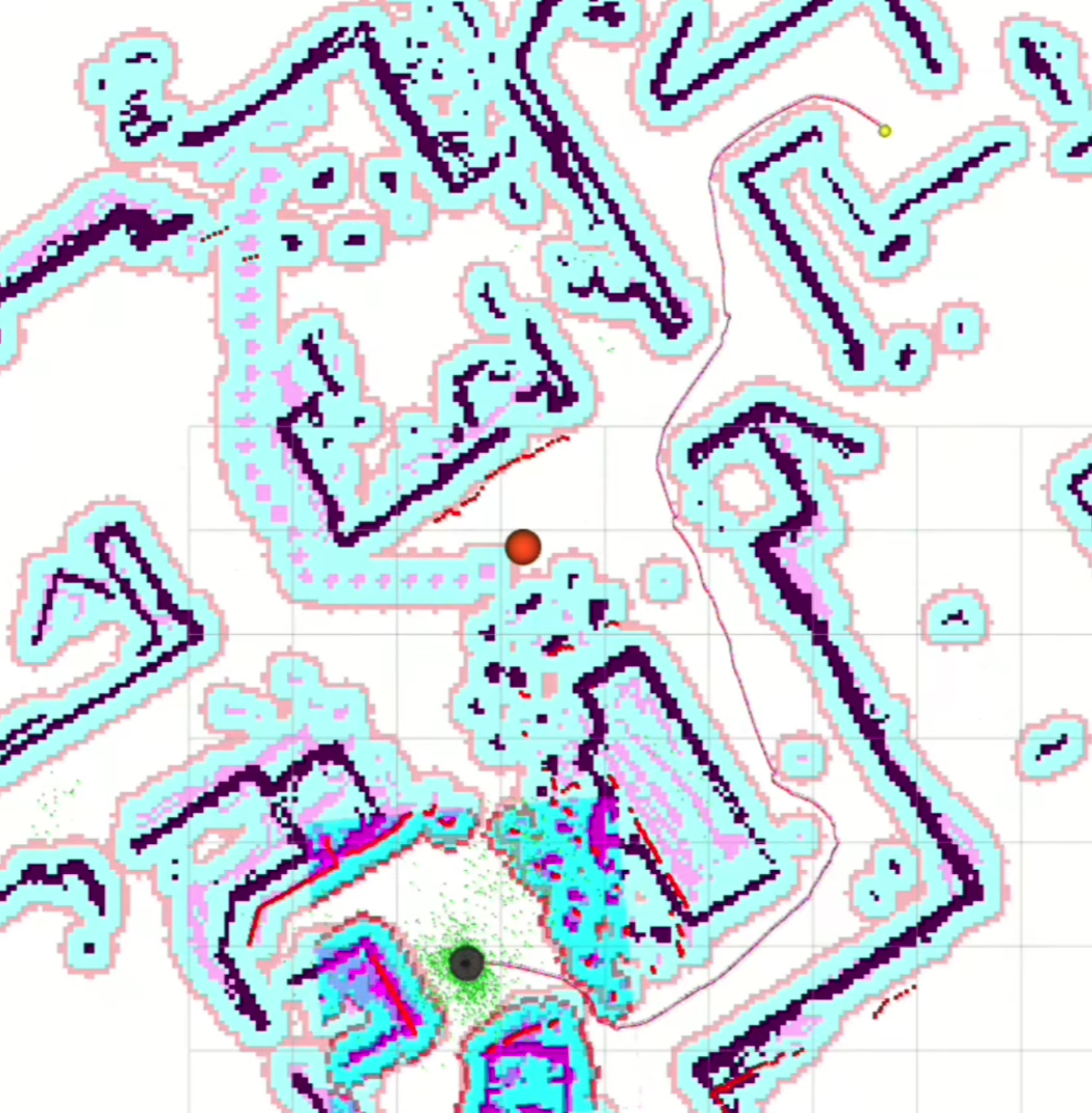

Puppy Guarding

This made the reliability of the custom Ghost-Aware path planning algorithm faulty. However if we exclude the last pellet collection, the path planning success rate jumps to 60%.

4.Ethical Impact Statement

Privacy and Data Handling

PacManBot uses ROS 2 topics, localization data, map files, and logged robot data to operate and evaluate performance. In this implementation, the main privacy concern is not facial recognition, but the storage of indoor environment information through maps, AMCL pose logs, trajectory logs, and demo recordings. The map used for navigation may reveal the layout of an indoor space, and ROS logs may record where the TurtleBot 4 moved during testing. Future versions that add cameras or cloud connectivity would increase privacy risk and should include data minimization, local-only processing, restricted access to logs, and blurring/anonymization for any recorded video.

Bias and Hardware Limitations

PacManBot depends heavily on TurtleBot 4 localization, LiDAR sensing, maps, and Nav2 navigation. This creates hardware-related bias because the robot may perform well in clear, mapped environments but poorly around glass, reflective surfaces, clutter, narrow passages, or areas where LiDAR returns are unreliable. AMCL localization may also become inaccurate if the map does not match the real environment. This means the robot’s performance is not equally reliable in all spaces.

Safety and Kinetic Energy Management

PacManBot moves autonomously using the TurtleBot 4 platform, ROS 2 Nav2, AMCL localization, and goal commands from the planner node. The main safety risk is unintended robot motion, such as navigating toward an incorrect pellet goal, localization drift, delayed stopping, or collision with walls, objects, or nearby users. The package also includes event-based motion in game_event_mapper.py, such as spinning or shaking during start/death events, so these motions should remain slow and time-limited. The project primarily relies on TurtleBot 4 navigation and Nav2 path planning to generate controlled robot movement rather than directly commanding unrestricted motion. The system sends navigation goals through ROS 2 action interfaces, allowing the Nav2 stack to manage path execution and obstacle-aware navigation. Additionally, custom game-event motion behaviors were designed with safety considerations in mind, avoiding forward linear motion during spin and animation sequences to reduce the likelihood of unintended impacts with nearby objects or users. Stop commands are also published during reset and shutdown operations to ensure the robot safely halts movement when behaviors complete.

Bias and Hardware Limitations

Utilitarian Test

From a utilitarian perspective, PacManBot is ethically justified because it provides educational value in ROS 2, Nav2, localization, autonomous planning, and human-robot interaction. However, these benefits only outweigh the risks if the system is tested safely, robot speed is controlled, and collected data is handled responsibly. In the scenario where there is no oversight with testing, it would fail the utilitarian test since the potential exposure of people/places would be detrimental.

Justice Test

From a justice perspective, the robot should operate reliably across different indoor environments. Since LiDAR, AMCL, and maps can fail under certain conditions, the system may be less reliable in spaces with glass, reflective objects, or poor map quality. Future work should improve robustness through better testing, sensor fusion, and clearer documentation of limitations. Based on the potential inconsistency in certain environmental conditions, it would mostly fail this test.

Virtue Test

From a virtue ethics perspective, the engineers should be honest about what the robot can and cannot do. For this project, that means clearly reporting Nav2 failures, localization drift, pellet-planning limitations, and safety risks instead of overstating performance. Responsible engineers should prioritize safe testing, transparent results, and continuous improvement. Since testing used LiDAR obstacle detection, reactive navigation, controlled robot movement, and indoor testing, it would pass the virtue test.

5. Individual Technical Contributions

The table below documents each team member’s primary technical role, representative Git commits, and directly authored or primarily maintained files. This section connects each contributor to concrete implementation work in the repository.

Team Member	Primary Technical Role (PTR)	Key Git Commits / PRs	Specific File(s) Authorship (Direct Links)
Sean Vellequette	System Integration, Audio Systems & Startup Support	6bbc8db, 8f1803e	PacManBot.rviz, audio_library.py, audio_node.py, wait_for_amcl_pose.py
Gabriel Sandys	Autonomous Planning, Clyde Behavior & Navigation Integration	36a52a3, a70386d, 65a8745	clyde_ghost_node.py, game_light_node.py, pellet_manager.py, planner_stub.py, launch files, game_state_demo_gui.py (secondary owner)
Abdirahman Aden	Game Event Logic, Game Controller & GUI Integration	72e47dd, c483625	game_controller.py, game_event_mapper.py, game_state_demo_gui.py (primary owner)

Milestone 3

Table of Contents

Video Demonstration

1. PacManBot Abstract Diagram

2. Algorithm

Low Level System Diagram

rqt graph showing custom nodes

rqt graph showing custom nodes with library nodes

2.1 Final Updated Module Declaration Table

2.2 Algorithm Logic and System Model

Total Logic Summary: PacManBot Game Autonomy

Algorithm 1: Pellet Generation and Removal

Key Map-to-Pellet Logic

Algorithm 2: Clyde Ghost Motion and Obstacle Publishing

Clyde Prediction and Costmap Logic

Algorithm 3: Clyde-Aware Pellet Selection

Clyde-Aware Scoring and Escape Logic

Algorithm 4: Planner Execution and Replanning

Replanning, Collection, and Death Conditions

Algorithm 5: Game Controller State Machine

Game State and Score Update Logic

Algorithm 6: Game Event Mapping

Algorithm 7: Light Feedback

Lightring State Logic

Algorithm 8: Audio Feedback

Audio Frequency Conversion

Algorithm 9: User Interface and Startup Support

2.3 Algorithm Summary

3. Benchmarking & Results

3.1 Observations of Pacman Success

3.2 Conclusion

4.Ethical Impact Statement

Privacy and Data Handling

Bias and Hardware Limitations

Safety and Kinetic Energy Management

Bias and Hardware Limitations

Utilitarian Test

Justice Test

Virtue Test

5. Individual Technical Contributions
